MINI MILI CNC MX-5SH
Nā kaha kiʻi optomechanical
ʻO nā kiʻi o Taizheng CNC turret milling machine, i loaʻa mai ka hoʻolālā ʻana o Taiwan, aia nā mea koʻikoʻi e like me nā ʻāpana mechanical a me nā kiʻi uila. Hana ʻia ka moena mīkini me ka Meehanite hoʻoheheʻe ʻia, hana ʻia ma o nā ʻenehana kūikawā, a he rigidity maikaʻi loa; Ua hoʻonohonoho pono ʻia ka spindle me ka ikaika ʻoki ikaika, kūpono no ka hoʻoponopono ʻana i nā ʻāpana pololei, nā ʻāpana a me nā ʻāpana, etc.
Kaʻina Hana Hana
Hana ʻia ka mīkini wili turret TAJANE me ka hoʻohana ʻana i nā kiʻi kumu mua o Taiwan, a ua hana ʻia ka hoʻolei ʻana me ka hoʻohana ʻana i ke kaʻina hoʻoheheʻe Mihanna me nā mea TH250. Hana ʻia ia ma o ka hemahema maoli, ka mālama ʻana i ka wela, a me ka hoʻoponopono anu.
Kaʻina hoʻolei meehanite
ʻO ka pōʻalo pōʻalo Linear slide rail
ʻO ka milo i hana ʻia e KENTURN
HERG Lubrication Pump
Huki lāʻau Laka mīkini
Hoʻohui ʻia e NBK Iapana
Pūnaehana mana helu SIMMENS 808D
HDW Tool magazine
Kiekie precision chuck hui
Palekana Uila
ʻO ka pahu hoʻomalu uila he lepo-hōʻoia, wai ʻole, a me nā hana anti leakage. Ke hoʻohana nei i nā ʻāpana uila mai nā brand e like me Siemens a me Chint. E hoʻonohonoho i ka pale relay palekana 24V, ka pale ʻana o ka mīkini, ka pale ʻana i ka puka puka, a me nā hoʻonohonoho pale ʻana i nā mana he nui.
Hānai lāʻau Spindle mea paahana Hoʻololi i ka helu
Hoʻolālā kiʻi kiʻi pale hōʻike kala
ʻAno ʻōlelo he nui
Hoʻopau i ke kī
Kukukui Kukuhi Mana Mana
Pale honua
Pihi hooki pilikia
Puke paa paa

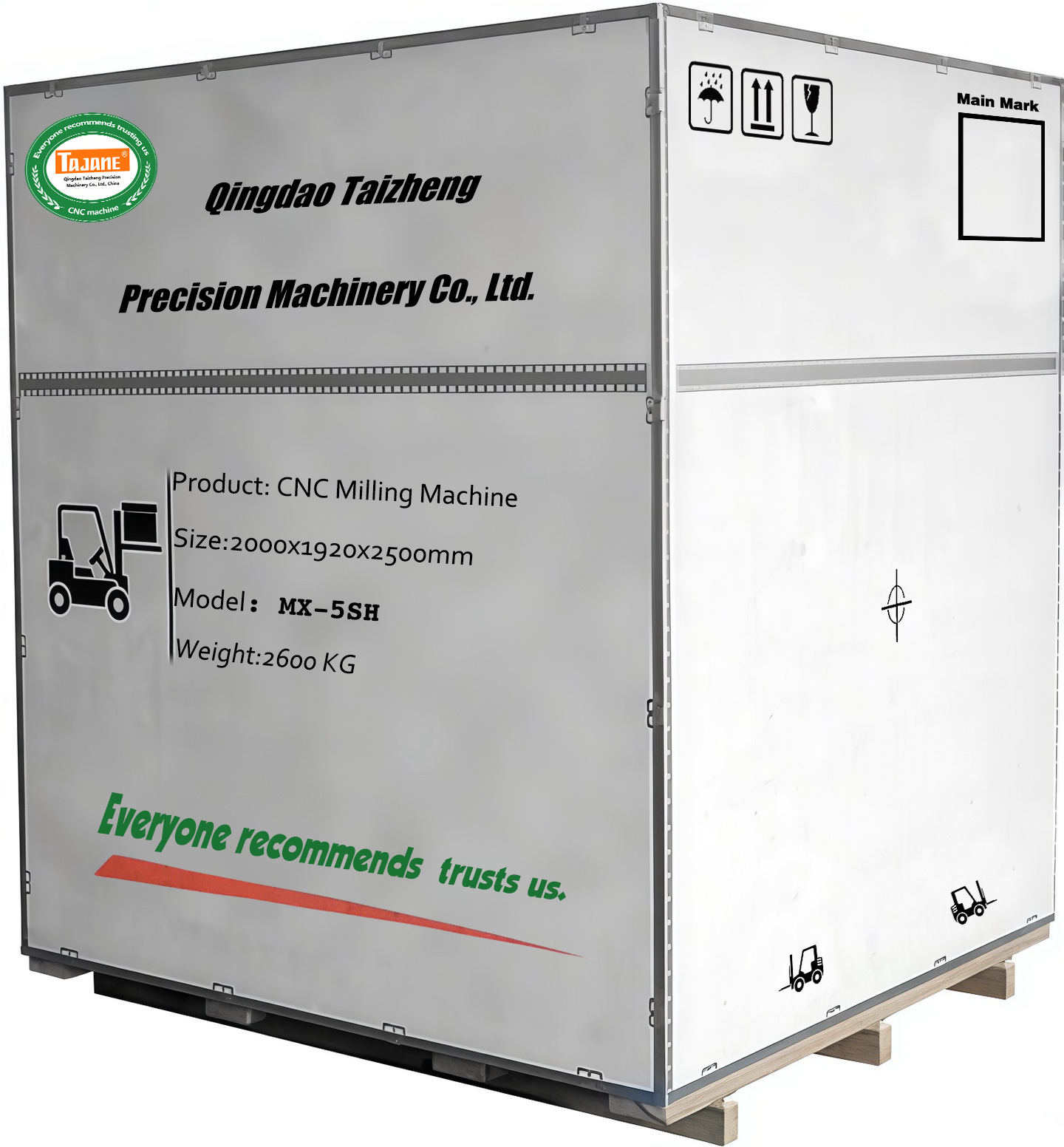

ʻO ka halihali palekana, ua hoʻopaʻa ʻia ka mīkini paʻahana a me ka moisture-proof i loko, a me ka fumigation free lāʻau paʻa a hoʻopaʻa piha ʻia i ka pahu kila ma waho. Hiki ke lawe pono ʻia i kēlā me kēia wahi o ka honua.
ʻO nā mea hoʻopaʻa kāʻei kila, ʻeke lāʻau,
Hoʻopili paʻa, paʻa a tensile.
Hāʻawi manuahi ʻia i nā awa nui a me nā awa hoʻomaʻemaʻe dute a puni ka ʻāina.
Hoʻokō nā lako mīkini wili i nā pono hana like ʻole
Nā lako maʻamau: ʻEiwa mau mea waiwai nui i hoʻokomo ʻia ma ke ʻano he makana no ka hālāwai ʻana i nā pono hana like ʻole o nā mea kūʻai aku.
E hōʻike i ʻeiwa ʻano ʻāpana lole e hoʻonā i kou hopohopo
Nā ʻāpana hiki ke hoʻopau ʻia: Hoʻokomo ʻia nā mea hoʻohana nui ʻeiwa no ka maluhia o ka noʻonoʻo. ʻAʻole paha ʻoe e pono iā lākou, akā e mālama lākou i ka manawa ke hana ʻoe.
| ʻAno moe | 1473 x 320mm |
| X axis o ka hahau papa hana | 950mm/980mm (palena hahau) |
| Paʻi noho noho hoʻoheheʻe (Y axis) | 380mm/400mm (palena hahau) |
| ʻO ka pahu pahu spindle (Z axis) | 415mm |
| Haʻi lima ʻeleʻele | 380mm |
| Hapai papakaukau | 280KG (piha piha)/350KG (waena o ka papa hana 400mm) |
| Nui T-slot | 3 x 16 x 75mm |
| axis kumu | BT40- ∅120 Taiwan Keychun |
| Ka māmā holo kumu | 8000rpm |
| Mana milo | 3.75KW(helu ʻia) 5.5KW(nui loa) |
| uila uila | 380V |
| pinepine | 50/60 |
| Ka pololei o ka hoonoho | Mawaena o ka papa hana 400mm:0.009mm/± 0.003mm |
| ʻO ka hahau piha 950mm:0.02mm, ʻaʻohe 300mm/0.009mm | |
| E hānai i ka mana kaʻa | X、Y/7Nm Z/15Nm me ka haki |
| Holo wikiwiki loa | X, Y axis/12m/min Z-axis/18m/min |
| ʻO ke koʻokoʻo uea kinipōpō X ke ʻano | 3208 Taiwan kumu |
| ʻO ke koʻokoʻo uea kinipōpō Y ʻano | 3208 Taiwan kumu |
| ʻO ke koʻokoʻo uea kinipōpō Z lāʻau | 3205 Taiwan kumu |
| Alanui X axis | ʻO 35Ball wire track nona paʻa iā Taiwan |
| laina laina Y axis | ʻO 35Ball wire track nona paʻa iā Taiwan |
| Alanui Z axis | 30Ball uea track nona holoʻokoʻa e Taiwan |
| paakiki | NBKIapana |
| ʻO ka pahu pahi | Haocheng Taiwan |
| mea paahana | 12 Ke ʻano bakeke ʻo Taiwan brand |
| ʻōnaehana | Siemens, Kelemānia808D pūnaewele |
| Anana kinona mea hana mīkini | 2000x1920x2500 |
| kaumaha | 2600 kg |
| Ka pololei o ka ho'onohonoho 'ana i ka pololei X-directional ka ho'onohonoho 'ana i ka pololei | 0.02mm/0.012mm |
| Hoʻonohonoho pololei / hana hou i kahi o 400mm ma waenakonu o ka papa hana | 0.009mm/0.006mm |
