Ke kikowaena mīkini paʻa VMC-1100
Ke kumu
Hoʻolālā kūikawā ʻia ʻo TAJANE vertical machining center VMC-1100 series no ka hoʻoponopono ʻana i nā ʻāpana paʻakikī e like me nā pā metala, nā ʻāpana like ʻole, nā ʻōpala a me nā hale liʻiliʻi. Hiki i ke kikowaena machining vertical ke hana pono i nā hana e like me ka milling, boring, drilling, tapping and thread cutting, e hāʻawi ana i nā hoʻonā no ka hana ʻana i nā ʻāpana metala ma nā ʻano āpau.
Hoohana Huahana

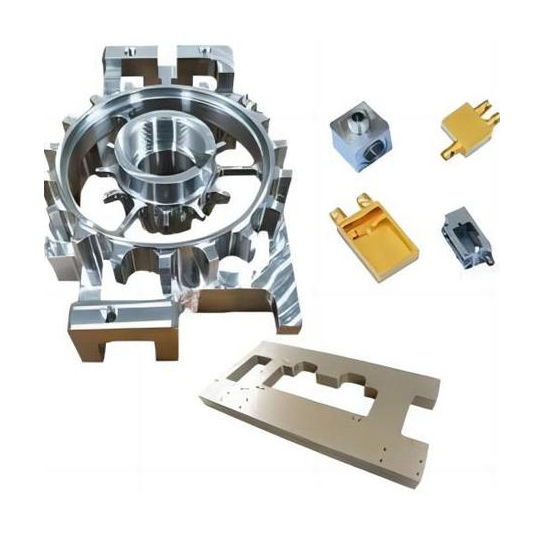

Hiki ke hoʻohana ʻia ʻo TAJANE vertical machining center VMC-1100 series e hoʻoponopono i nā ʻāpana kikoʻī o nā huahana 5G, a hiki ke hoʻokō i nā pono hana o nā ʻāpana pūpū, nā ʻāpana kaʻa a me nā ʻāpana like ʻole. Eia hou, hiki iā ia ke hoʻomaopopo i ka wikiwiki wikiwiki o nā'āpana pahu-type, hoʻomaikaʻi i ka hana pono a me ka pololei o ka hana.

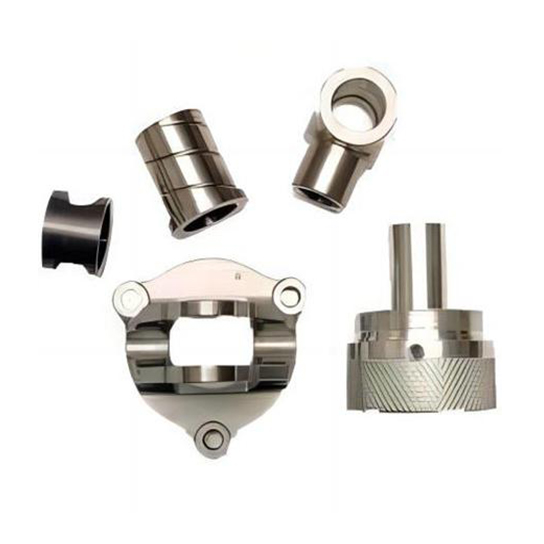

ʻO ke kikowaena mīkini kūwaho 5G ka hana ʻana i nā ʻāpana kikoʻī

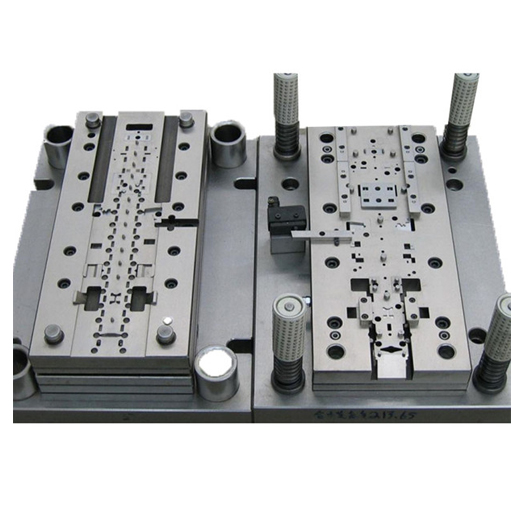

Ke kikowaena mīkini paʻa no ka hana pūʻulu o nā ʻāpana pūpū

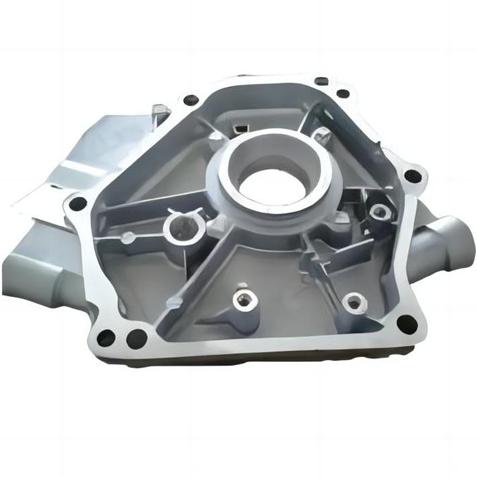

Ke kikowaena mīkini kū pololei no ka hana ʻana i nā ʻāpana kaʻa

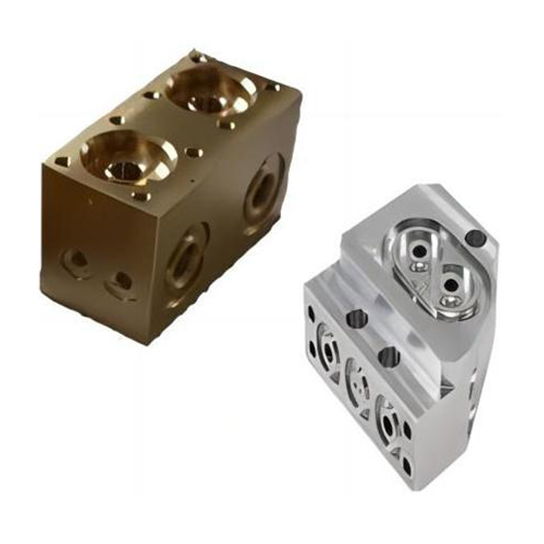

Ke kikowaena mīkini kū pololei no ka hana ʻana i nā ʻāpana ʻano pahu
Ke kikowaena machining vertical no ka hana ʻana i nā ʻāpana poni
Kaʻina hoʻolei huahana
No ka CNC VMC-1100 vertical machining center series, ua hoʻohana nā mea hoʻoheheʻe i ke kaʻina hoʻolei Meehanite me ka papa TH300, e hōʻike ana i ka ikaika kiʻekiʻe a me ke kūpaʻa kiʻekiʻe. Hoʻolālā ʻia ka ʻaoʻao o ka hoʻoheheʻe ʻana o ka VMC-1100 vertical machining center me kahi ʻano iwi ʻaoʻao e like me ka pā pālua. Hiki i ka worktable cross slide a me ka base ke hoʻokō i nā koi o ka ʻoki kaumaha a me ka neʻe wikiwiki, e hāʻawi ana i nā mea hoʻohana i kahi ʻike hana ʻoi aku ka maikaʻi a paʻa.
Pehea e hoemi ai i ka helu kulike ole o
ʻO ka hoʻolei ʻana i ke kikowaena machining vertical i 0.3%
ʻO CNC vertical machining center，me ka pā pālua ʻelua e like me ka iwi iwi i loko o ka hoʻolei ʻana.
ʻO ka CNC vertical machining center, ka pahu spindle e hoʻohana i ka hoʻolālā kūpono a me ka hoʻolālā kūpono.
ʻO ka moena a me ke kolamu o ka moena machining vertical e hele i ka wā kahiko no ka ʻoi aku ka pololei.
ʻO CNC vertical machining center, table cross slide and base, e hālāwai me ka ʻoki kaumaha a me ka neʻe wikiwiki
Kaʻina hana hui huahana
Ma ka VMC-1100 vertical machining center, hoʻonui ʻia ka paʻa o ka pololei a me ka rigidity o ka mīkini ma o ka ʻoki ʻana i nā ʻili pili o nā mea e like me ka noho ʻana, nā wahi pili o ka noho nut papa hana a me ka slider, ka ʻili pili ma waena o ka pahu spindle a me ka spindle, a me nā ʻili pili o ke kumu a me ke kolamu. I ka manawa like, hoʻopau ia i ke koʻikoʻi o loko o ka mīkini mīkini, hoʻemi i ka friction, a hoʻolōʻihi i ke ola lawelawe o ke kikowaena machining vertical.
Pehea ka pololei o ke kikowaena mīkini kuʻekuʻe "ʻoki ʻia"?
① ʻO ka ʻoki ʻana a me ka hoʻopaʻa ʻana i ka noho o ke kikowaena machining vertical
② ʻO ka ʻoki ʻana a me ka hili ʻana o nā ʻili pili ma waena o ka noho nati papa hana a me ka mea paheʻe
③ ʻO ka ʻili pili ma waena o ke poʻo a me ka spindle o ke kikowaena machining vertical
④ ʻO ka ʻoki ʻana a me ka ʻili ʻana o ka ʻili pili ma waena o ke kumu a me ke kolamu
Kaʻina nānā pololei
Loaʻa nā huahana a pau o ka CNC VMC-1100 vertical machining center series i nā hoʻokolohua pololei ma mua o ka haʻalele ʻana i ka hale hana. Hoʻopili kēia i ka nānā pololei geometric, ka nānā pololei ʻana i ke kūlana, ka nānā ʻana i ka pololei o ka ʻoki ʻana, a me ka nānā ʻana i ka pololei interferometer laser. Pono kēlā me kēia ʻanuʻu i nā ana he nui no ka helu ʻana i ka waiwai awelika, i mea e hōʻemi ai i nā hewa pōʻino, e hōʻoia i nā hopena, a loaʻa i ka wikiwiki kiʻekiʻe, kiʻekiʻe-pololei, a me nā hopena mīkini kiʻekiʻe.

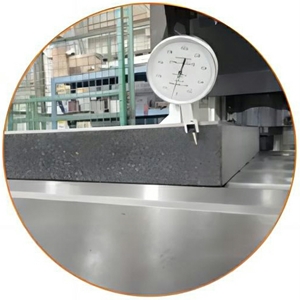

Ho'āʻo pololei ʻo Workbench
Opto-mechanical inspection
ʻIke Verticality

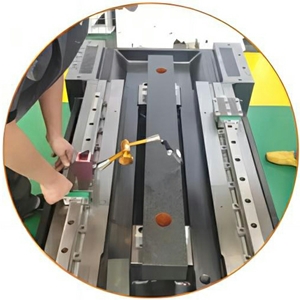

ʻIke ʻia ʻo Parallelism

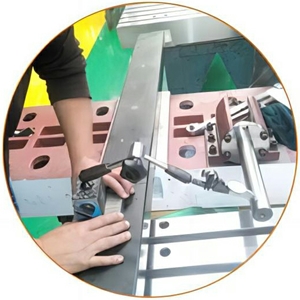

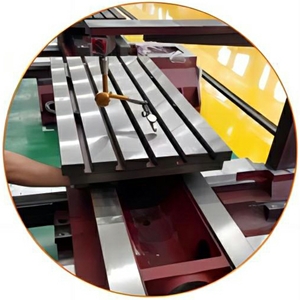

Nānā Pono Noho Nut

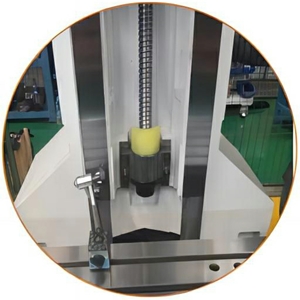

ʻIke ʻana i ka ʻaoʻao ʻokoʻa
Nā hiʻohiʻona hoʻolālā
ʻO nā mea nui o ke kino mea hana mīkini no nā kikowaena mīkini paʻa VMC-1100 series i hana ʻia me ka HT300 kiʻekiʻe-ikaika hina hina hao, e hoʻomaʻamaʻa ana i ka wela, ka ʻelemakule kūlohelohe a me ka hoʻoponopono anu anuanu. Hoʻohana ʻo ia i kahi kolamu herringbone, me kahi mīkini counterweight no ka Z-axis. Hoʻopili lima ʻia nā ala alakaʻi, hoʻonui i ka rigidity a pale i ka haʻalulu machining.

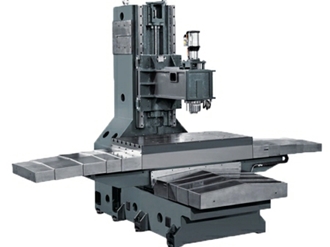

Kiʻiʻoniʻo o ka hoʻolei ʻana i ke kikowaena mīkini kū pono
Mīkini māmā kikowaena kikowaena
ʻO ke kikowaena mīkini paʻa kūwaho

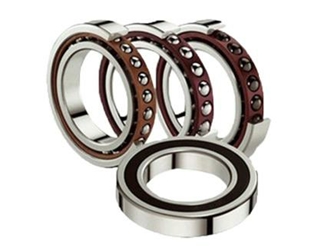

ʻO ke kikowaena mīkini paʻa ʻo Vertical machining center Bearing

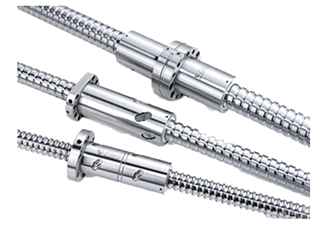

ʻO ke kikowaena machining vertical CNC, Lead screw
Puke paa paa

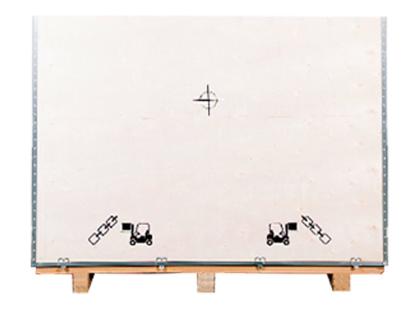

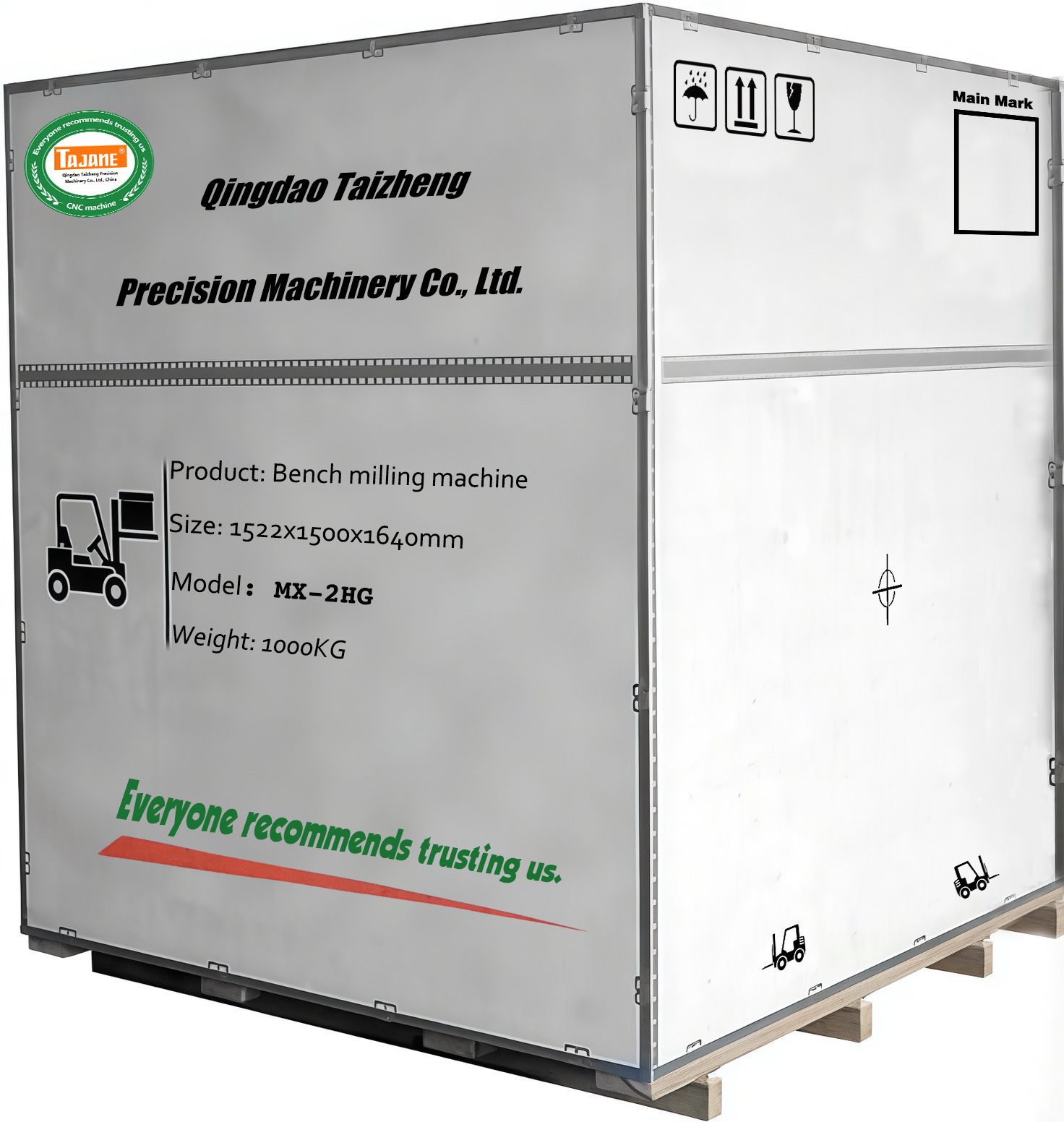

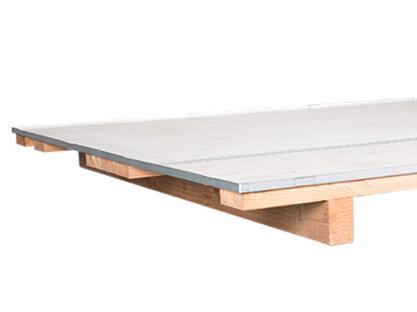

Hoʻopili ʻia ka pūʻulu holoʻokoʻa o CNC VMC-1100 vertical machining centers i loko o nā pahu lāʻau i hoʻopaʻa piha ʻia, me ka hoʻopaʻa haʻahaʻa ʻana i ka wai i loko o nā pahu. He kūpono lākou no ka halihali lōʻihi e like me ka halihali ʻāina a me ke kai. Hiki ke hā'awi 'ia i nā wahi a pau o ka honua me ka palekana a me ka manawa kūpono.
Hoʻopili paʻa, paʻa a tensile.
Hāʻawi manuahi ʻia i nā awa nui a me nā awa hoʻomaʻemaʻe dute a puni ka ʻāina.
Ka wehe ʻana i nā māka
Laka pili
axis waena lāʻau paʻa
Hoʻokomo ʻia i ka ʻumeke
Nā lako maʻamau
Mea lako hou

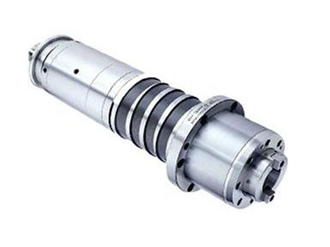

I. No ka piha piha o VMC-1100 vertical machining centers, koho nā spindles i loaʻa e like me nā lako hou.

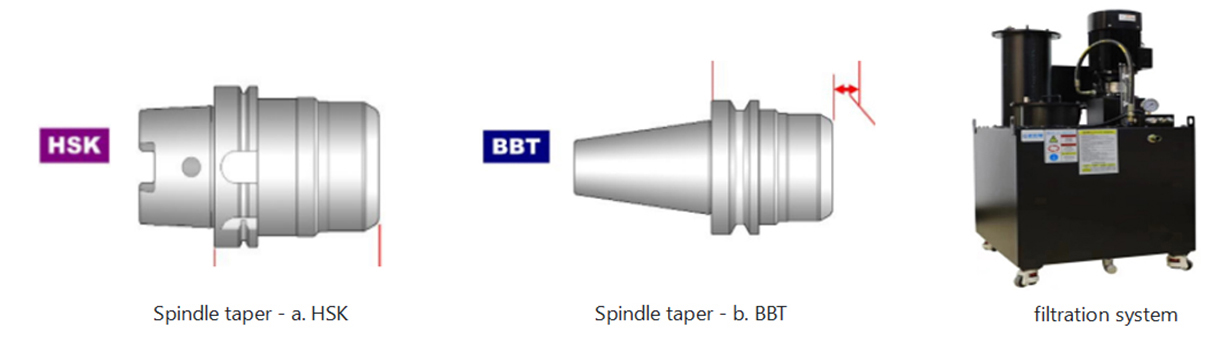

II. No ka piha piha o VMC-1100 mau kikowaena machining vertical, hiki ke loaʻa nā ʻano huila spindle taper a me nā ʻōnaehana hoʻoheheʻe wai kikowaena spindle ma ke ʻano he mea lako hou.
III. No ka piha piha o ka VMC-1100 vertical machining centers, hiki i kahi mea hoʻonohonoho koho e like me nā mea hana hou.

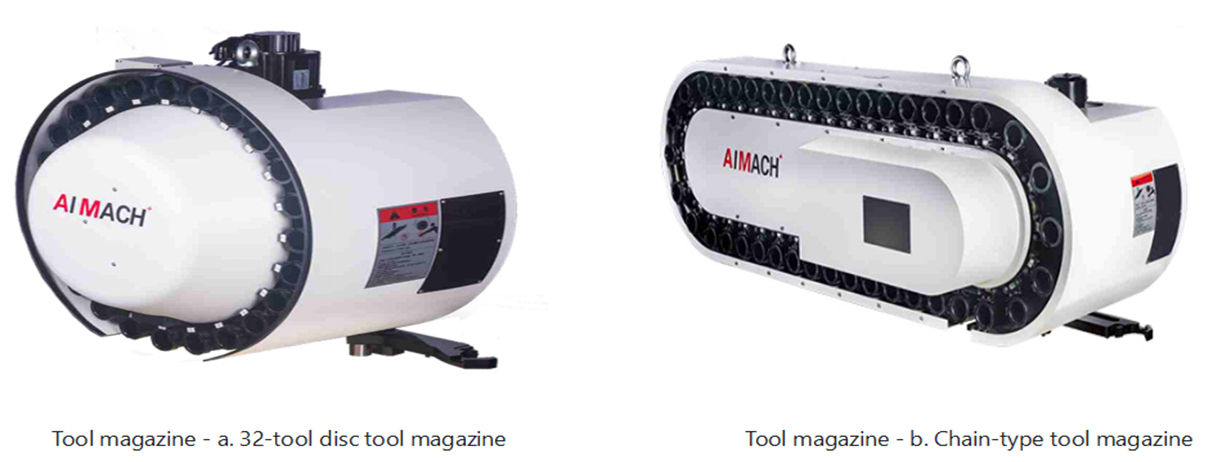

IV. No ka piha piha o ka VMC-1100 vertical machining centers, loaʻa kahi makasina hāmeʻa koho e like me nā mea hana hou:

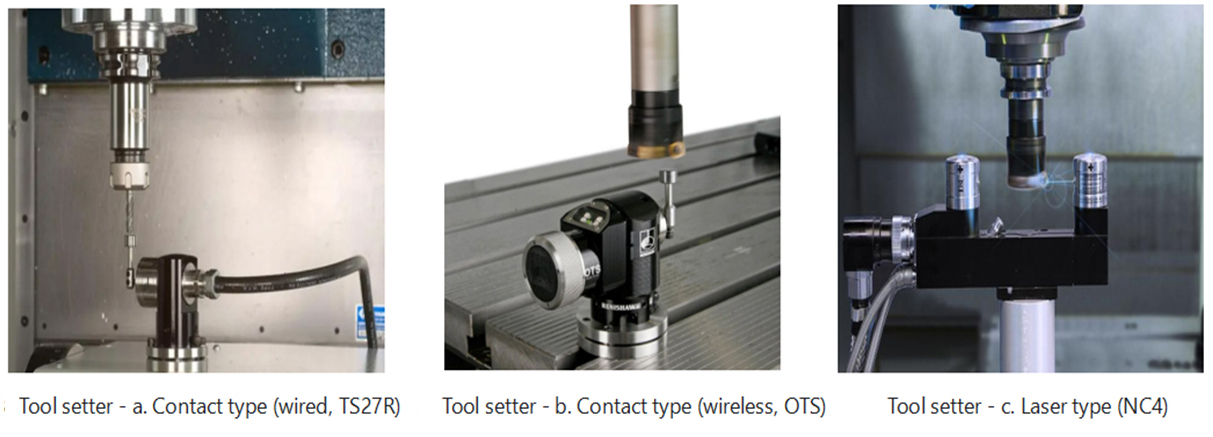

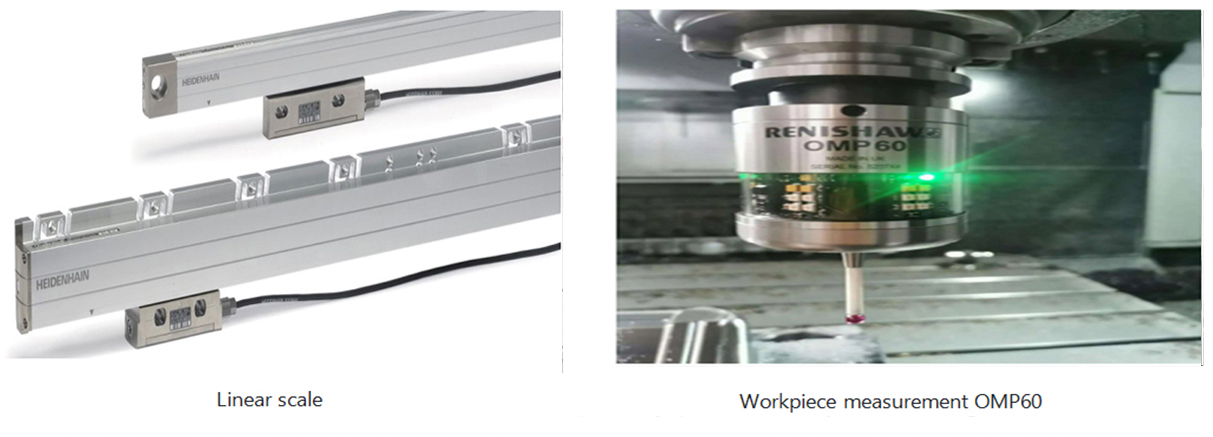

V. No ka piha piha o VMC-1100 vertical machining centers, koho laina unahi a me workpiece ana OMP60 i loaʻa e like me nā lako hou.

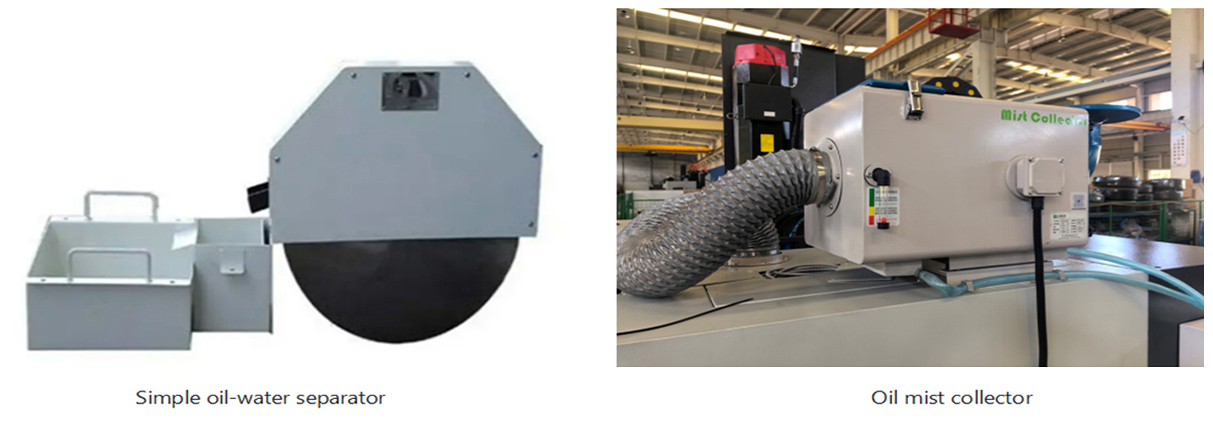

VI. No ka piha piha o VMC-1100 mau kikowaena machining vertical, hiki ke koho ʻia nā mea hoʻokaʻawale ʻaila-wai maʻalahi a me nā ʻohi ʻaila ʻaila ma ke ʻano he mea hana hou.

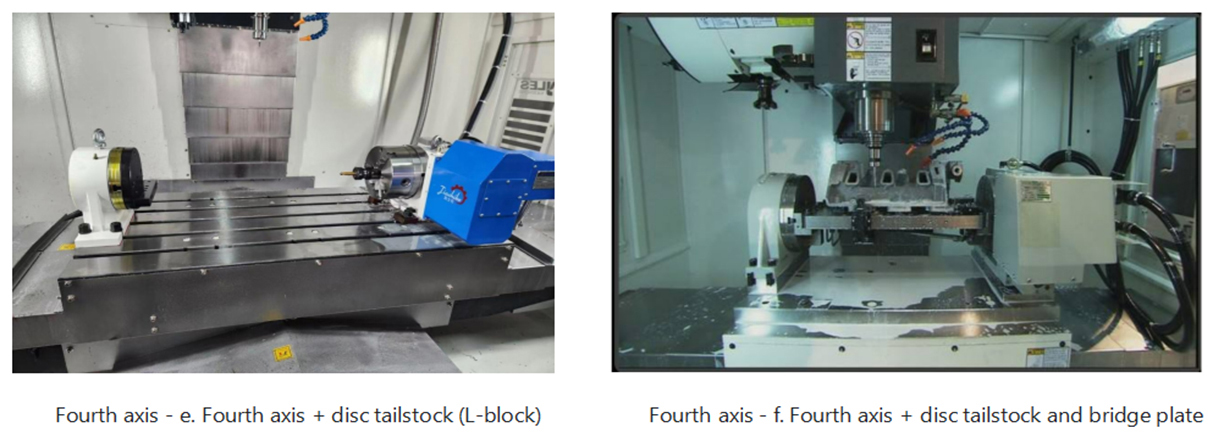

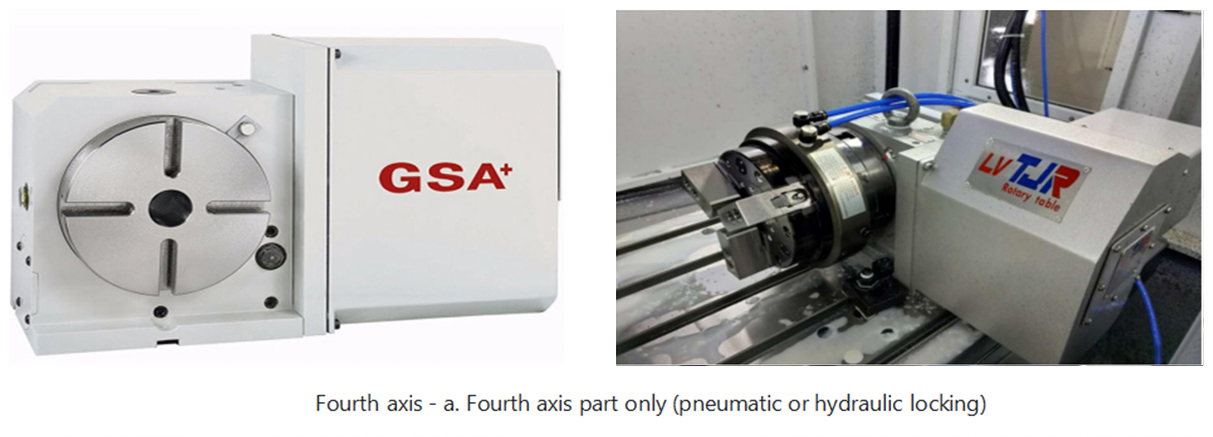

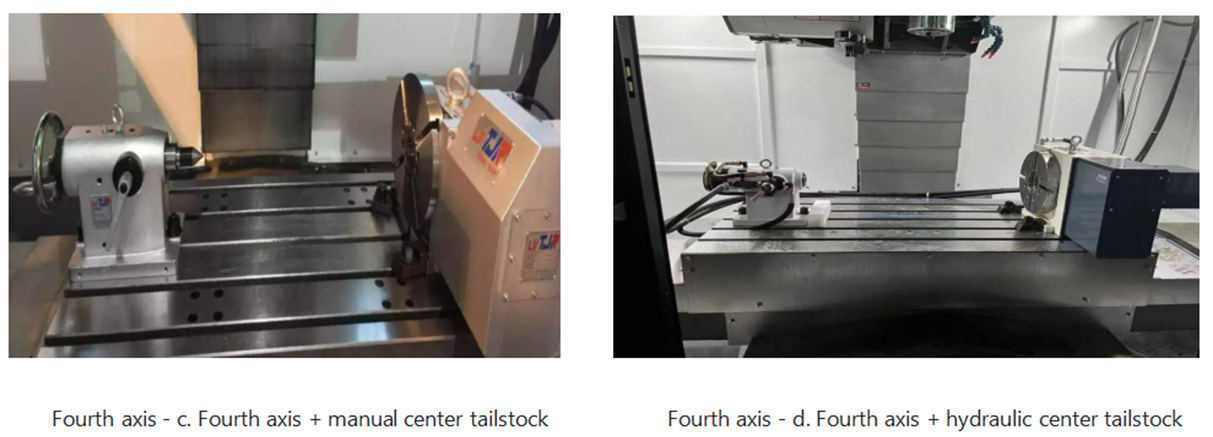

VII. No ka piha piha o ka VMC-1100 vertical machining centers, he koho hāhā axis i loaʻa e like me nā mea hana hou.

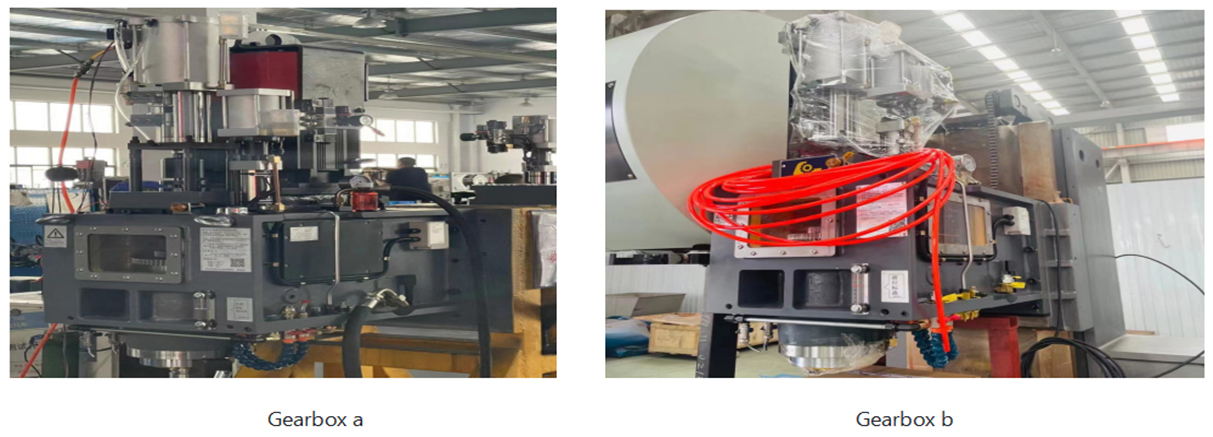

VIII. No ka piha piha o ka VMC-1100 vertical machining centers, loaʻa kahi pahu pahu koho e like me nā mea hana hou:

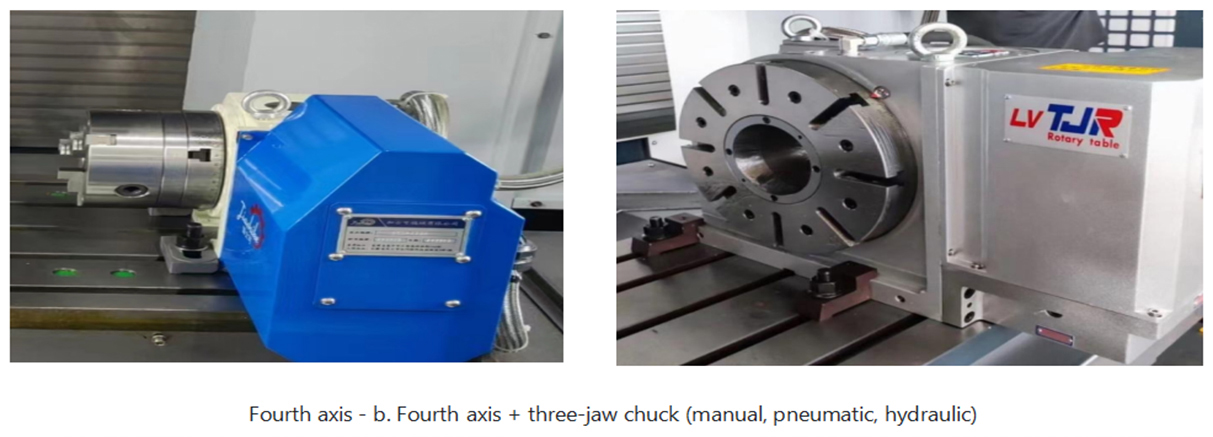

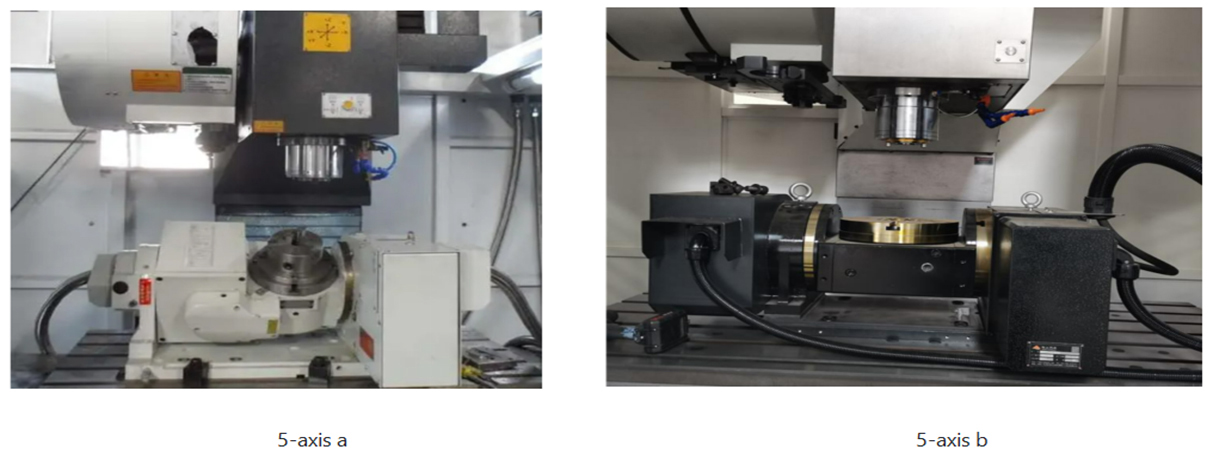

IX. No ka piha piha o ka VMC-1100 vertical machining centers, he koho ʻelima axis i loaʻa e like me nā mea hana hou.

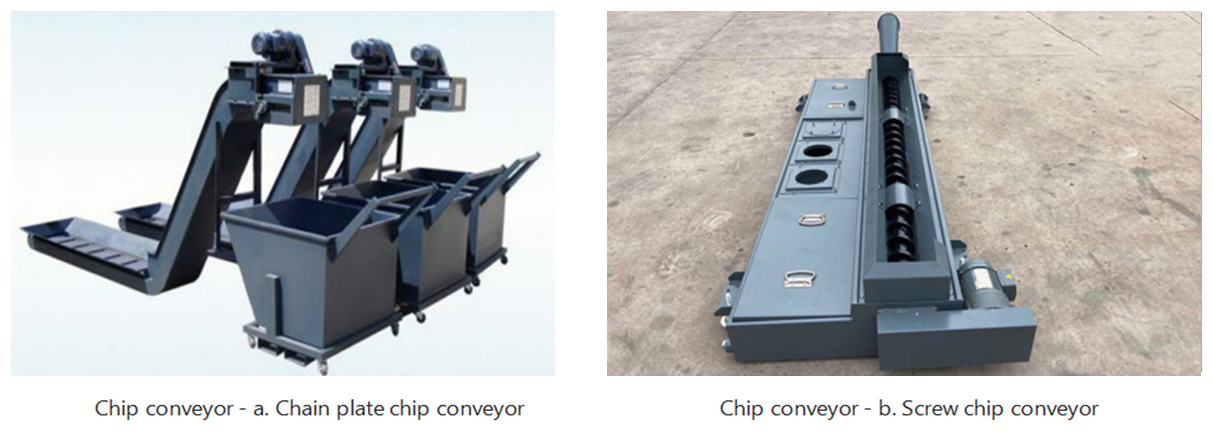

X. No ka piha piha o ka VMC-1100 vertical machining centers, hiki ke loaʻa kahi mea lawe chip koho e like me nā mea hana hou.
| Hoʻohālike | VMC-1100 (Ekolu Alanui Linear) | VMC-1100 (ʻElua Alanui Linear a me Hoʻokahi Alanui Paʻa) | VMC-1100 (ʻEkolu Ala Ala Paʻa) |
|---|---|---|---|
| ikaika | |||
| ʻōniʻoniʻo Spindle | BT40 | BT40 | BT40 |
| Ka wikiwiki o ka milo (rpm/min) | 8000 | 8000 | 8000 |
| Mana Kahiko Nui | 11kw | 11kw | 11kw |
| Ka mana lako | 25 | 25 | 25 |
| Laulā hana | |||
| Huakaʻi X-axis | 1100mm | 1100mm | 1100mm |
| Huakaʻi Y-axis | 650mm | 650mm | 600mm |
| Huakaʻi Z-axis | 750mm | 750mm | 600mm |
| Ka nui o ka papa hana | 650X1200 | 650X1200 | 600X1300 |
| Haawe kiekie loa o ka papa hana | 800 kg | 800 kg | 800 kg |
| ʻO ka papa hana T-slots | 5-18*120 | 5-18*120 | 5-18*120 |
| Ka mamao ma waena o Spindle Axis a me Column | 722mm | 700mm | 655mm |
| Ka mamao mai ka Spindle End Face a i ka papa hana | 95-845mm | 95-845mm | 180-780mm |
| Kaʻina hana | |||
| Holo wikiwiki ma ke koʻi X/Y/Z (m/min) | 24/24/24 | 24/24/15 | 15/15/15 |
| Mea Hana Hana (mm/min) | 1-10000 | 1-10000 | 1-10000 |
| Pūnaehana mana helu | |||
| ʻO FANUC MF3B hoʻonohonoho | X-axis: βiSc22/3000-B axis Y: βiSc22/3000-B Z-axis: βis22/3000B-B Milo: βiI 12/10000-B | X-axis: βiSc22/3000-B axis Y: βiSc22/3000-B Z-axis: βis22/3000B-B Milo: βiI 12/10000-B | X-axis: βiSc22/3000-B axis Y: βiSc22/3000-B Z-axis: βis22/3000B-B Milo: βiI 12/10000-B |
| SIEMENS 828D Hoʻonohonoho | X-axis:1FK2308-4AC01-0MB0 Y-axis:1FK2308-4AC01-0MB0 Z-axis: 1FK2208-4AC11-0MB0 Milo: 1PH3131-1DF02-0KA0 | X-axis:1FK2308-4AC01-0MB0 Y-axis:1FK2308-4AC01-0MB0 Z-axis: 1FK2208-4AC11-0MB0 Milo: 1PH3131-1DF02-0KA0 | X-axis:1FK2308-4AC01-0MB0 Y-axis:1FK2308-4AC01-0MB0 Z-axis: 1FK2208-4AC11-0MB0 Milo: 1PH3131-1DF02-0KA0 |
| Mitsubishi M80B Hoʻonohonoho | X-axis: HG303S-D48 Y-axis: HG303S-D48 Z-axis:HG303BS-D48 Milo: SJ-DG11/120 | X-axis:HG204S-D48 Y-axis:HG204S-D48 Z-axis:HG303BS-D48 Milo: SJ-DG7.5/120 | X-axis:HG204S-D48 Y-axis:HG204S-D48 Z-axis:HG303BS-D48 Milo: SJ-DG7.5/120 |
| Pūnaehana mea kani | |||
| Mea Hana Mekala ʻAno a me ka hiki | ʻAno diski (ʻano manipulator) 24 ʻāpana | ʻAno diski (ʻano manipulator) 24 ʻāpana | ʻAno diski (ʻano manipulator) 24 ʻāpana |
| ʻAno Paʻa Mea Hana | BT40 | BT40 | BT40 |
| ʻO ke anawaena mea hana kiʻekiʻe | Φ80/Φ150mm | Φ80/Φ150mm | Φ80/Φ150mm |
| Ka lōʻihi o ka mea hana | 300mm | 300mm | 300mm |
| Kaumaha Mea Hana Nui | 8 kg | 8 kg | 8 kg |
| Ka pololei | |||
| Hiki ke hana hou i nā Axes X/Y/Z | 0.009mm | 0.009mm | 0.009mm |
| Ka pololei o ke kau ʻana o nā koʻi X/Y/Z | 0.007mm | 0.007mm | 0.007mm |
| X/Y/Z Axis Alakai 'Ano | alakai laina X-axis: 35 Y-axis: 45 Z-axis: 45 | Ke alakaʻi laina + alakaʻi paʻakikī X-axis: 45 Y-axis: 45 Z-axis: alakaʻi paʻakikī | Alanui paakiki |
| Hōʻikeʻike Screw | 4012/4012/4012 | 4012/4012/4012 | 4010/4010/4010 |
| Aspect | |||
| Ka lōʻihi | 3000mm | 3000mm | 3350mm |
| Laulā | 2880mm | 2880mm | 2600mm |
| Kiʻekiʻe | 3100mm | 3100mm | 3100mm |
| Kaumaha | 6800 kg | 6800 kg | 8000 kg |
| Pono ʻia ke ea | ≥0.6MPa ≥500L/min(ANR) | ≥0.6MPa ≥500L/min(ANR) | ≥0.6MPa ≥500L/min(ANR) |
